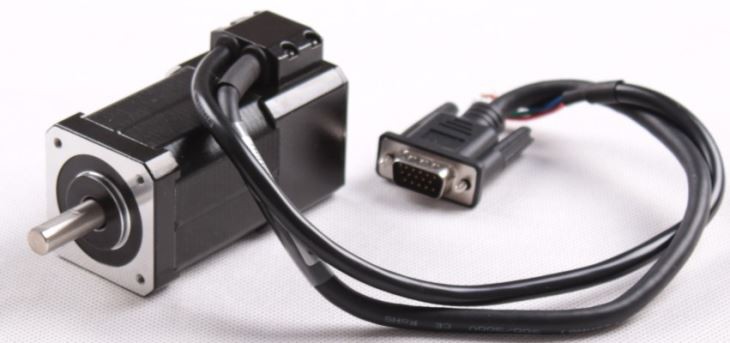

Product Introduction:Nema17 step servo motor with 0.8Nm torque
This is the largest torque of Nema17 size step servo motor,with 0.8Nm torque,8mm motor shaft,4 lead wires,82mm motor length,best use for the machine that requires for high speed and stable.
Product Technical Data:Nema17 step servo motor with 0.8Nm torque
Model | Holding Torque(NM) | Current /Phase(A) | Resistance (Ω) | Inductance (MH) | Rotary Nertia (g.cm²) | Length (MM) | Weight (Kg) | Matched Drive |
EC42-08 | 0.8 | 2.3 | 1.74 | 4.6 | 102 | 82 | 0.5 | EC808D |
Product Technique Feature:Nema17 step servo motor with 0.8Nm torque
EC42-08 Specification | |
Accuracy | ±5%(full step、unload) |
Temperature | 50℃ MAX |
Environment | -20℃~+50℃ |
Insulation Resistance | 100MΩmin 500VDC |
Pressure | 500VAC for one minute |
Radial runout | 0.02 Max(450g-load) |
Axial runout | 0.08 Max(450g-load) |
Motor Dimension:Nema17 step servo motor with 0.8Nm torque
Motor Encoder Wiring Defination(DB15PIN male)
Motor encoder outlet definition(DB15 Pin male connector) | ||
PIN | Cable Color | Definition |
1 | blue/black | EA+ |
2 | red | VCC |
3 | Red/white | GND |
11 | Green/black | EB+ |
12 | green | EB- |
13 | blue | EA- |
Motor Wiring
