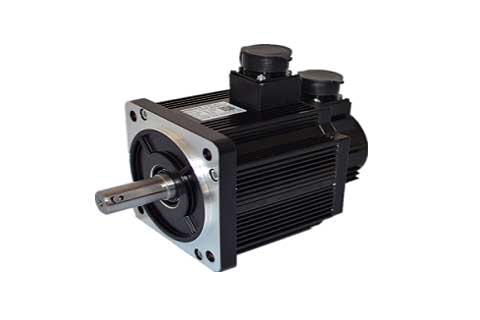

Product Introduction:150mm flange AC servo motor can be used with kinds of servo drive
The EC-M series high voltage brushless AC servo motors provide applications with high torque density to attain high acceleration capability and faster positioning. They are available in metric frame sizes from 60 mm to 180 mm(the servo motor power range is 100W—5.5KW) . Standard modes have standard cable options for direct connection to the ECON drive.The 150mm flange AC servo motor is widely used with many Chinese brand drive,and its price is very competitive with other suppliers.
Product Parameter and Model No.:150mm flange AC servo motor can be used with kinds of servo drive
Model | EC- 150M380CC | EC- 150M300C | EC- 150M360C | EC- 150M470C | EC- 150M550C | EC- 150M360B | |||||||||||||||||
Rated Power(W) | 3.8 | 3.0 | 3.6 | 4.7 | 5.5 | 3.6 | |||||||||||||||||
Rated Voltage(V) | 220 | 220 | 220 | 220 | 220 | 220 | |||||||||||||||||
Rated Current(A) | 17 | 14 | 17 | 21 | 24 | 17 | |||||||||||||||||
Rated Speed(RPM) | 2500 | 2000 | 2000 | 2000 | 2000 | 1500 | |||||||||||||||||
Holding Torque(Nm) | 15 | 15 | 18 | 23 | 27 | 23 | |||||||||||||||||
Peak Torque(Nm) | 30 | 30 | 36 | 46 | 54 | 46 | |||||||||||||||||
Voltage Constant(V/1000*RPM) | 59 | 70 | 71 | 72 | 64 | 90 | |||||||||||||||||
Torque Coefficient(N.m/A) | 0.88 | 1.07 | 1.05 | 1.09 | 1.1 | 1.35 | |||||||||||||||||
Rotor inertia(kg.㎡) | 3.88×10-3 | 3.88×10-3 | 4.6×10-3 | 5.8×10-3 | 6.8×10-3 | 5.8×10-3 | |||||||||||||||||
Line-Line Resistance(Q) | 0.23 | 0.34 | 0.255 | 0.2 | 0.125 | 0.3 | |||||||||||||||||
Line-Line Inductance(mH) | 1.08 | 1.55 | 1.3 | 1.06 | 0.7 | 1.66 | |||||||||||||||||
Electric time-constant(Ms) | 4.7 | 4.56 | 5.1 | 5.3 | 5.6 | 5.53 | |||||||||||||||||
Weight(kg) | 15.2 | 15.2 | 17.2 | 20.4 | 22.7 | 21 | |||||||||||||||||
Encoder line number(PPR) | 2500 | ||||||||||||||||||||||
Isolation class | Class B | ||||||||||||||||||||||
Safety Class | IP65 | ||||||||||||||||||||||
Using Environment | Temperature:-20℃~ +40℃,Humidity Below 90%RH No dewing | ||||||||||||||||||||||
Motor Power Plug | Wire Lead | U | V | W | PE | ||||||||||||||||||
Pin NO. | 2 | 3 | 4 | 1 | |||||||||||||||||||
Encoder Plug | Wire Lead | 5V | 0V | A+ | B+ | Z+ | A- | B- | Z- | U+ | V+ | W+ | U- | V- | W- | PE | |||||||
Pin NO. | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 1 | ||||||||
Product Installation:
1:Installation/disassembly components coupled to the motor shaft end, do not hit shaft hard to prevent the other side of motor shaft encoder was knocked out bad.
2: Striving to make the best of its shaft to prevent vibration and bearing damage.

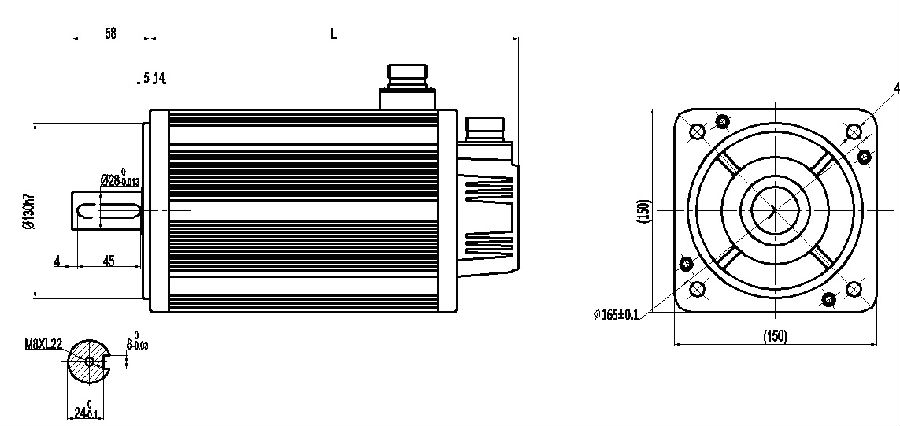

Product Dimension:
Model | EC- 150M380CC | EC- 150M300C | EC- 150M360C | EC- 150M470C | EC- 150M550C | EC- 150M360B | EC- 150M360B |
L (without brake) | 230 | 230 | 248 | 278 | 190 | 302 | 278 |
L (with brake) | 303 | 303 | 321 | 351 | 230 | 375 | 351 |
Matched Driver | ECN-GA3230B | ECN-GA3230B | ECN-GA3230B | ECN-GA3230B | ECN-GA3230B | ||
Cable for option | (Pulse cable)Controller to driver | 3-10M for option | |||||
(Encoder cable)Encoder to driver | |||||||
(Power cable)Motor to driver | |||||||
