Product Introduction:2 phase digital microstep Stepper Drive with current under 5.6A
Product Features:
●New generation 32bit DSP
●Good smoothness ,low noise ,low heat
●Build-in micro step setting
●Build-in current setting
●The standstill current can be set to 50%
●Opto-isolated differential pulse input
●The response frequency is up to 300KHz
●Over voltage , under voltage, over current protection

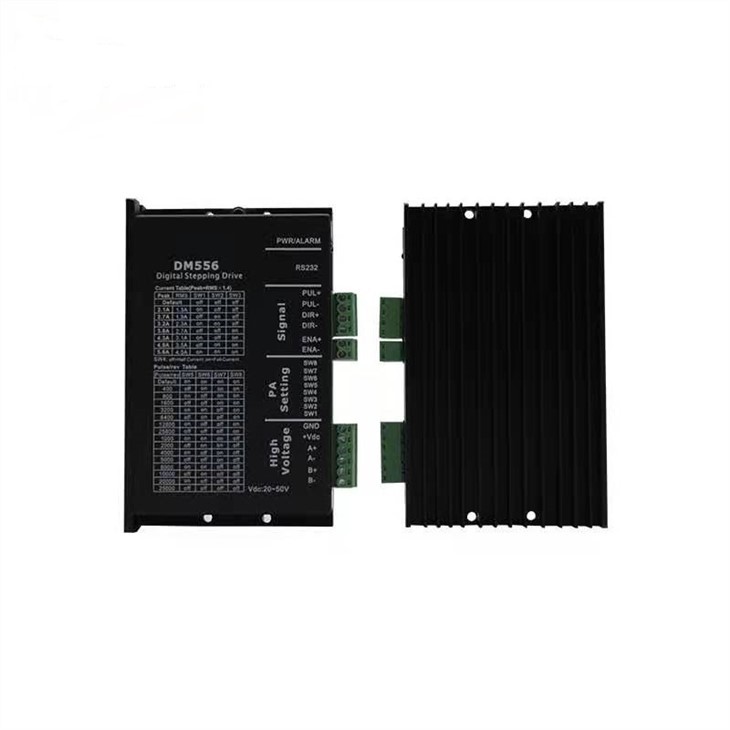

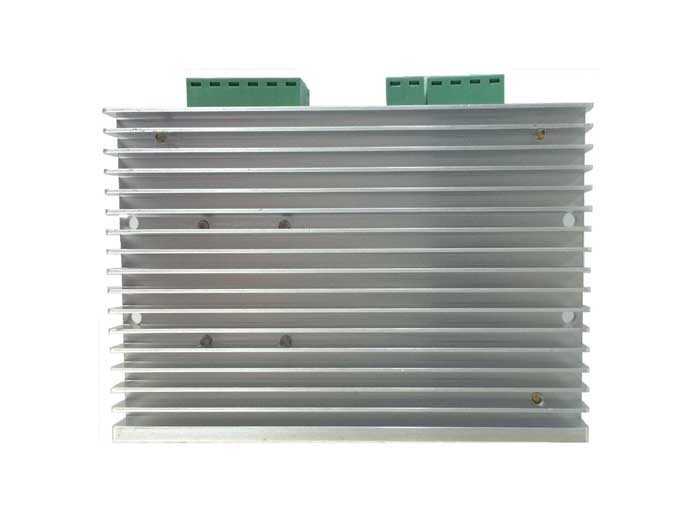

DM556 is the new generation high performance fully digital stepper drive which base on 32bit DSP with a advanced algorithm .the power supply range is DC20~50V. it can drive frame size 42mm to 57mm 2 phase stepper motor .Ultra low noise and high smoothness at middle/low speed ,and high torque at high speed, which can be applied to different speed control applications. adopt smooth and accurate sinusoidal current vector control technology ,which make motor low heat .
Product Function:2 phase digital microstep Stepper Drive with current under 5.6A
Current Setting
Peak current(A) | RMS current (A) | SW1 | SW2 | SW3 |
1.4 | 1.0 | OFF | OFF | OFF |
2.1 | 1.5 | ON | OFF | OFF |
2.7 | 1.9 | OFF | ON | OFF |
3.2 | 2.3 | ON | ON | OFF |
3.8 | 2.7 | OFF | OFF | ON |
4.3 | 3.1 | ON | OFF | ON |
4.9 | 3.5 | OFF | ON | ON |
5.6 | 4.0 | ON | ON | ON |
Standstill Current Setting
SW4:OFF=Half Current
ON=Full Current
Microstep Setting
Pul/rev | SW5 | SW6 | SW7 | SW8 |
200 | ON | ON | ON | ON |
400 | OFF | ON | ON | ON |
800 | ON | OFF | ON | ON |
1600 | OFF | OFF | ON | ON |
3200 | ON | ON | OFF | ON |
6400 | OFF | ON | OFF | ON |
12800 | ON | OFF | OFF | ON |
25600 | OFF | OFF | OFF | ON |
1000 | ON | ON | ON | OFF |
2000 | OFF | ON | ON | OFF |
4000 | ON | OFF | ON | OFF |
5000 | OFF | OFF | ON | OFF |
8000 | ON | ON | OFF | OFF |
10000 | OFF | ON | OFF | OFF |
20000 | ON | OFF | OFF | OFF |
25000 | OFF | OFF | OFF | OFF |
Mounting dimension(unit:mm)
