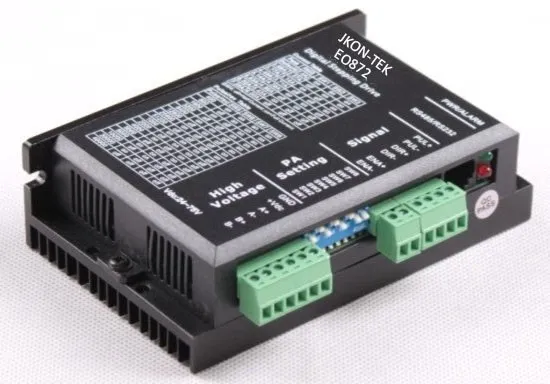

Bipolar motor drivers EO872 description as following

Product Features:

1.Voltage:24V~75VDC,peak current 7.2A

2.Apply for magnetic linkage vector resonance resistance algorithm and electronic damping low-speed vibration arithmetic

3.Auto recognize motor parameters and auto tuning control parameters when power is on

4.Build-in micro-step segmentation algorithm, to achieve low micro-step control command, high micro-step operate effect

5.Receive differential and single-end PUL/DIR command

6.Pulse,direction,enable signal port electric level compatible 4.5V~28VDC ,no need to connect external resistor

7.Set positive edge ,negative edge, single pulse, dual pulse and motor initial direction by serial port

8.Control command Max pulse frequency is 500KHz(Default is 200KHz)

9.Provide 15 gears micro-step value setting, to set 200~51200 micro-step by Serial port

10.Have serial port RS-232 or RS-485,can set or control drive parameters

11. can customized to 0~5V analogy speed function

12.Reliable,signal port is optical isolation

13. Over-voltage, over-current, under-voltage protecting

Product Diagram

DIP Description

EO series drive use 8 DIP to set micro-step ,running current and half/full current, below is the detail of model EO872:

Current Setting Half/Full-Current Micro-step setting

PRODUCT CURRENT SETTING:

Micro-step Setting:

Product Dimension(UNIT:mm)
