3 Phase Stepper Motor Nema 42 Series

3 Phase Stepper Motor Nema 42 Series

ECON offers high quality 3 phase 1.2° stepper motors which is made of high quality cold roll sheet copper and anti-high temperature permanent magnet. Those 3 phase stepper motors are available in frame size Nema23, 34, or 42, with holding torque of 0.9 to 20N.M. ECON’s 3 phase stepper motors are highly reliable and low heating.

Chat Now
Product Details:

Product Introduction:3 Phase Stepper Motor Nema 42 Series

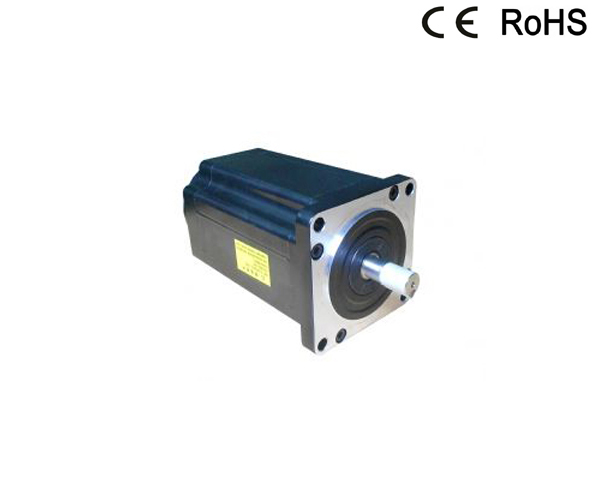

Nema42 3P motor.jpgECON offers high quality 3 phase 1.2° stepper motors which is made of high quality cold roll sheet copper and anti-high temperature permanent magnet. Those 3 phase stepper motors are available in frame size Nema23, 34, or 42, with holding torque of 0.9 to 20N.M. ECON’s 3 phase stepper motors are highly reliable and low heating. They can move smoothly & quietly without no obvious resonance areas in the whole speed range.


Product Technique Feature:3 Phase Stepper Motor Nema 42 Series

Insulation resistance    500VDC100MΩ Min

Insulating strength     500VAC 50Hz 1mA 1 Min

Environment temperature    -20~+40ºC

Temperature rise           80ºC Max

Insulation grade            B

Dimension

Model

Shaft diameter (mm)

Shaft extension(mm)

Shaft Length(mm)

3EO110-80

19

Flatkey 6x25

38

3EO110-130

19

Flatkey 6x25

38

3EO110-160

19

Flatkey 6x25

38

3EO110-200

19

Flatkey 6x25

38


Product Technical Data:3 Phase Stepper Motor Nema 42 Series

Model

Holding torque

(N.M)

Current/Phase

     (A)

Resistance

   (Ω)

Inductance

   (MH)

Rotary inertia

(g.cm2)

Length

(MM)

Weight

(Kg)

Lead

The matched

drive

3EO110-80

8

3.0

3.15

17

6000

113

5.2

3

DH3422MA

3EO110-130

13

3.0

4.2

22.6

9720

150

6.6

3

DH3422MA

3EO110-160

16

5.0

2.14

17.5

13560

183

9.0

3

DH3722MA

3EO110-200

20

5.0

2.4

24.4

17400

220

11.1

3

DH3722MA

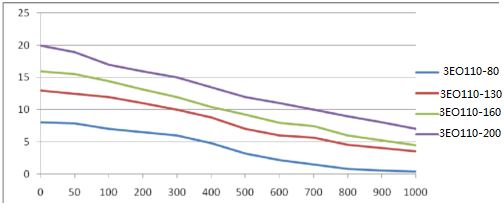

Torque-speed curve

Voltage:220VAC  Drive:DH3722MA

3

Motor wiring


Product Service:3 Phase Stepper Motor Nema 42 Series

ECON provide technical service from start to end,and will offer one year warranty. Any problem,can send e-mail to our technical engineer and sales,or directly chat on our website.


Payment and Delivery:3 Phase Stepper Motor Nema 42 Series

ECON supports T/T,Paypal,Western Union to make payment. We can arrange express,air and sea shipment,we have professional team to deal with logistic.


Recommendations:3 Phase Stepper Motor Nema 42 Series

High Voltage 3 Phase Digital Microstep Stepper Drive for 86~130mm size motor current under 4.2A

High Voltage 3 Phase digital microstep Stepper Drive for motor's size 86~130mm current under 7.0A

Power Supply
