Nema34 Easy Servo Motor 8.5N.M with 1000PPR encoder

ECON offers hybrid servo motors (stepper motors with encoders) from NEMA 23 to 42 with torque up to 12 Nm .These hybrid servo motors are integrated with 1,000-line incremental encoder.Compared with servo systems, easy servo systems have much higher low-speed torque that servo systems lack, significantly lower cost,and no hunting.

Chat Now
Product Details:

Product Introduction:closed loop motor system,nema 34 easy servo

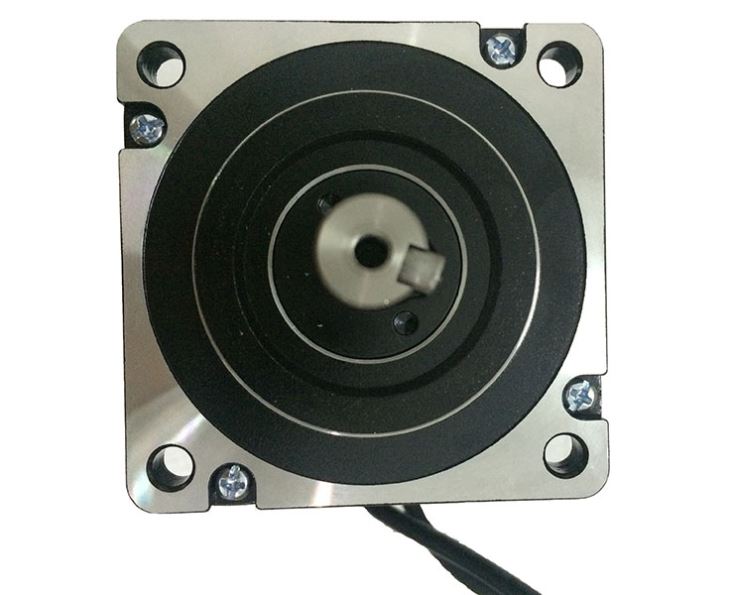

QL86HS118.jpgECON offers hybrid servo motors (stepper motors with encoders)  from NEMA 23 to 42 with torque up to 12 Nm .These hybrid servo motors are integrated with 1,000-line incremental encoder.

When driven by ECON's hybrid servo drives, the system can fully close the position loops between the drive and motor and eliminate loss of movement synchronization with features of no loss of steps and no torque reservation. Compared with servo systems, easy servo systems have much higher low-speed torque that servo systems lack, significantly lower cost, no overshooting, and no hunting.
ECON’s easy servo motors can also be implemented as standard stepper motors with encoders, and driven by stepper drives with the option of output encoder signal to a motion controller, PLC, or external device.
This series easy servo motors are available in NEMA 23 to 34 frame sizes with 0.9 - 12 Nm torque. It was designed to be powered by ECON’s
 series easy servo drives taking max 80 DC / AC voltage input.


Product Technique Feature:closed loop motor system,nema 34 easy servo

Step Accuracy    5%

Encoder      1000PPR

Step Angle    1.8º

Insulation resistance    500VDC100MΩ Min

Insulating strength    500VAC 50Hz 1mA 1 Min

Environment temperature    -20~+40ºC

Temperature rise    80ºC Max

Dimension


Product Technical Data:closed loop motor system,nema 34 easy servo

Model

Holding

Torque(N.M)

Current

/Phase(A)

Resistance

(Ω)

Inductance

(MH)

Rotary Inertia

(g.cm²)

Length

(MM)

Weight

(Kg)

Matched Drive

TC86-85

8.5

6

0.5

6.5

3600

118

3.8

TS808D/TS808Ah

Product Wiring:closed loop motor system,nema 34 easy servo


Motor   encoder outlet definition(DB15 Pin male connector)

PIN

Definition

1

EA+

2

VCC

3

GND

11

EB+

12

EB-

13

EA-


Product Service:closed loop motor system,nema 34 easy servo

ECON provide technical service from start to end,and will offer one year warranty. Any problem,can send e-mail to our technical engineer and sales,or directly chat on our website.


Payment and Delivery:closed loop motor system,nema 34 easy servo

ECON supports T/T,Paypal,Western Union to make payment. We can arrange express,air and sea shipment,we have professional team to deal with logistic.
