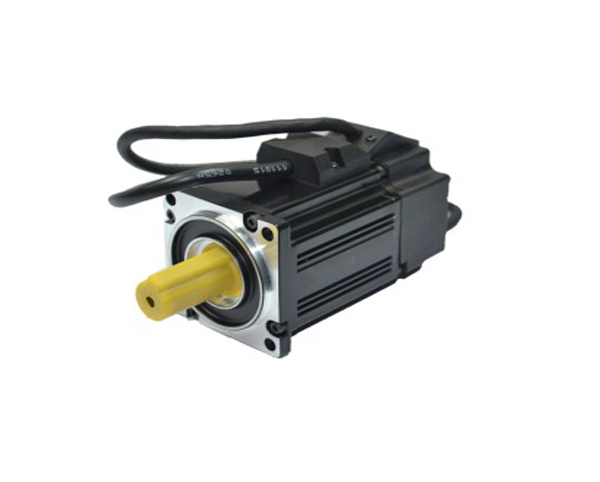

Favaroable 90mm frame size brushless AC servo motor features: 1.There are three members in 90mm frame size AC servo motor,they are 0.75kw with 3000RPM,0.73kw with 2000RPM and 1kw with 2500RPM.Though it has a few selections,help many small CNC machines or robot on control part 2.with high torque density to attain high acceleration capability and faster positioning 3.works very well with our G and G2 series servo drive.Also,it can works with other brand servo drive 4.2500PPR encoder
Chat NowProduct Introduction:Competitive price 90mm frame size AC Servo Motor widely used
The EC-M series high voltage brushless AC servo motors provide applications with high torque density to attain high acceleration capability and faster positioning. They are available in metric frame sizes from 60 mm to 180 mm(the servo motor power range is 100W—5.5KW) . Standard modes have standard cabling options for direct connection to the ECON drive
Product Selection And Parameter:Competitive price 90mm flange AC Servo Motor widely used
Model | EC-90M075D | EC-90M073C | EC-90M100CC | |||||||||||||||||
Rated Power(W) | 750 | 730 | 1000 | |||||||||||||||||
Rated Voltage(V) | 220 | 220 | 220 | |||||||||||||||||
Rated Current(A) | 3 | 3 | 4 | |||||||||||||||||
Rated Speed(RPM) | 3000 | 2000 | 2500 | |||||||||||||||||
Holding Torque(Nm) | 2.4 | 3.5 | 4 | |||||||||||||||||
Peak Torque(Nm) | 7.1 | 10.4 | 12 | |||||||||||||||||
Voltage Constant(V/1000*RPM) | 51 | 67 | 60 | |||||||||||||||||
Torque Coefficient(N.m/A) | 0.8 | 1.2 | 1 | |||||||||||||||||
Rotor inertia(kg.㎡) | 2.45x10-4 | 3.4x10-4 | 3.7x10-4 | |||||||||||||||||
Line-Line Resistance(Q) | 3.2 | 4.06 | 2.69 | |||||||||||||||||
Line-Line Inductance(mH) | 7 | 9.7 | 6.21 | |||||||||||||||||
Electric time-constant(Ms) | 2.2 | 2.39 | 2.3 | |||||||||||||||||
Weight(kg) | 3.1 | 3.9 | 4.2 | |||||||||||||||||
Encoder line number(PPR) | 2500 | |||||||||||||||||||
Isolation class | Class B | |||||||||||||||||||
Safety Class | IP65 | |||||||||||||||||||
Using Environment | Temperature:-℃~ +40℃,Humidity Below 90%RH No dewing | |||||||||||||||||||
Motor Power Plug | Wire Lead | U | V | W | PE | |||||||||||||||
Pin NO. | 1 | 2 | 3 | 4 | ||||||||||||||||
Encoder Plug | Wire Lead | 5V | 0V | B+ | Z- | U+ | Z+ | U- | A+ | V+ | W+ | V- | A- | B- | W- | PE | ||||
Pin NO. | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 1 |
Product Installation:Competitive price 90mm flange AC Servo Motor widely used
1:Installation/ disassemble components coupled to the motor shaft end, do not hit shaft hard to prevent the other side of motor shaft
encoder was knocked out bad.
2:Striving to make the best of its shaft to prevent vibration and bearing damage
Product Dimension:Competitive price 90mm flange AC Servo Motor widely used
Model | EC-90M075D | EC-90M073C | EC-90M100CC |
L (without brake) | 150 | 172 | 182 |
L (with brake) | 207 | 229 | 239 |
Matched Driver | ECN-GA3207B | ECN-GA3207B | ECN-GA3210B |
Cable for option | (Pulse cable)Controller to driver | 3-10M for option | |
(Encoder cable)Encoder to driver | |||
(Power cable)Motor to driver |
Product Service:Competitive price 90mm flange AC Servo Motor widely used
ECON provide technical service from start to end,and will offer one year warranty. Any problem,can send e-mail to our technical engineer and sales,or directly chat on our website.
